PrerequisiteAn Amazon account is required to set up your device before installing the Pickcel player app. If you don’t have one, create an Amazon account first.
1

Unbox and Connect Hardware

Unbox your Amazon Signage Stick and set up the hardware:
  • Connect the device to power using the provided power plug and wire.
  • Connect the device to your screen via the HDMI port.
  • Insert batteries into the remote control.
The device will power on automatically once connected to power, and the Amazon Signage Stick logo will appear.
Amazon Signage Stick Logo appears on screen
2

Set Up Device Settings and Network

Connect the remote controller by pressing the Home button.

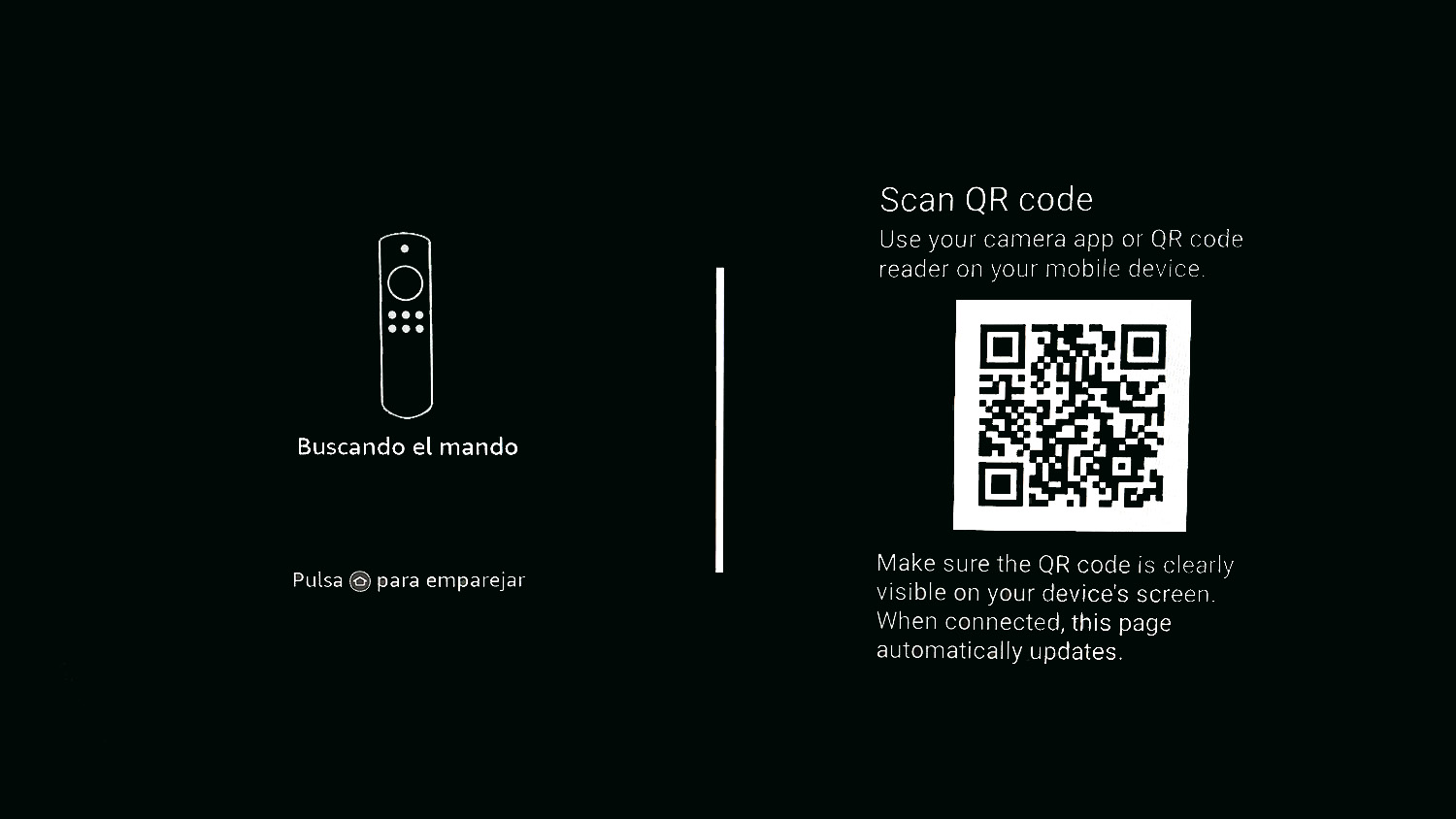

Amazon Signage Stick Remote
If your remote doesn’t pair automatically, press and hold the Home button on your remote until “Press button to start” appears on-screen (about 10 seconds).

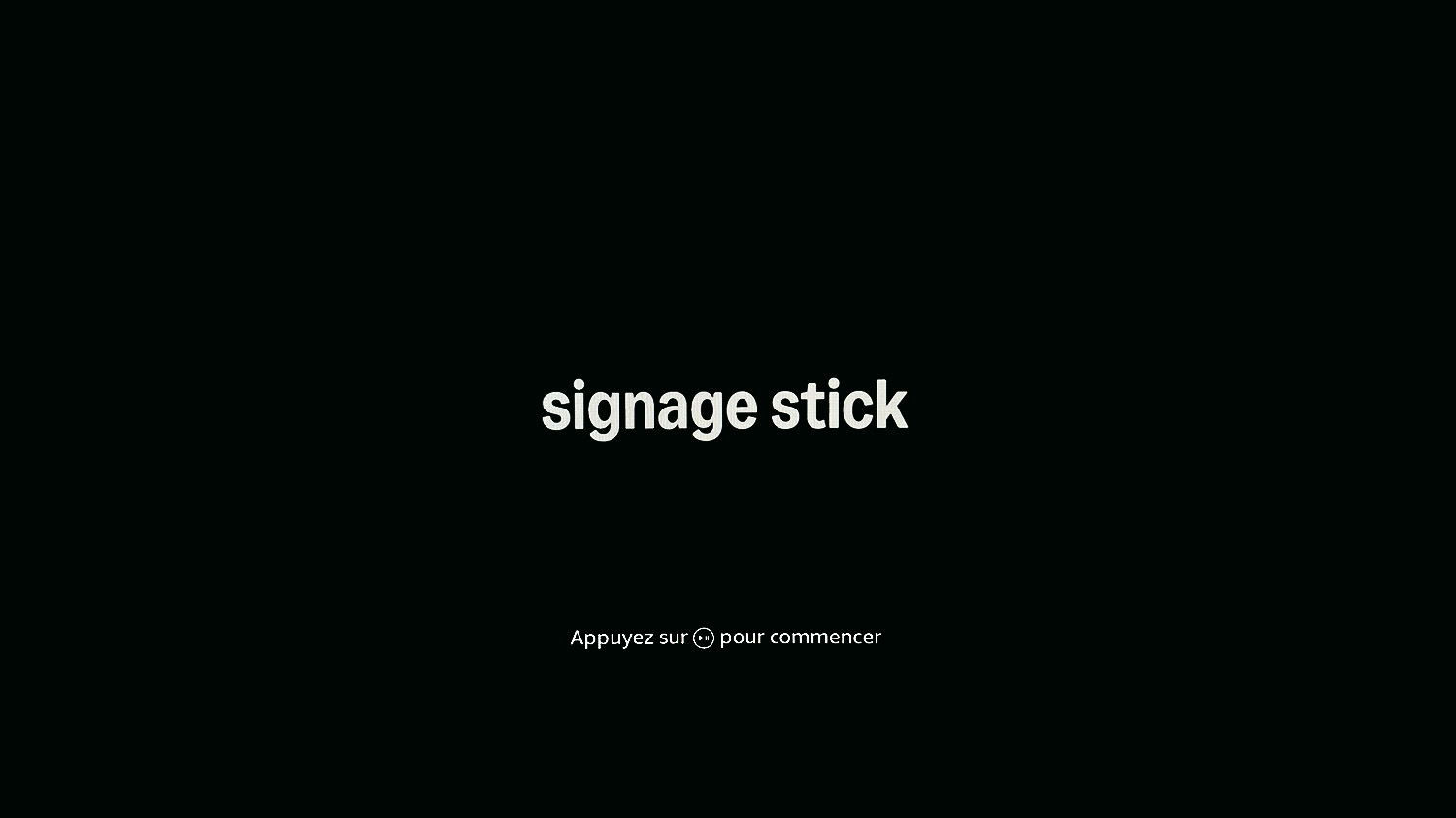

  • You will be prompted to click the Play/Pause button to begin setup.
Play/Pause button on remote

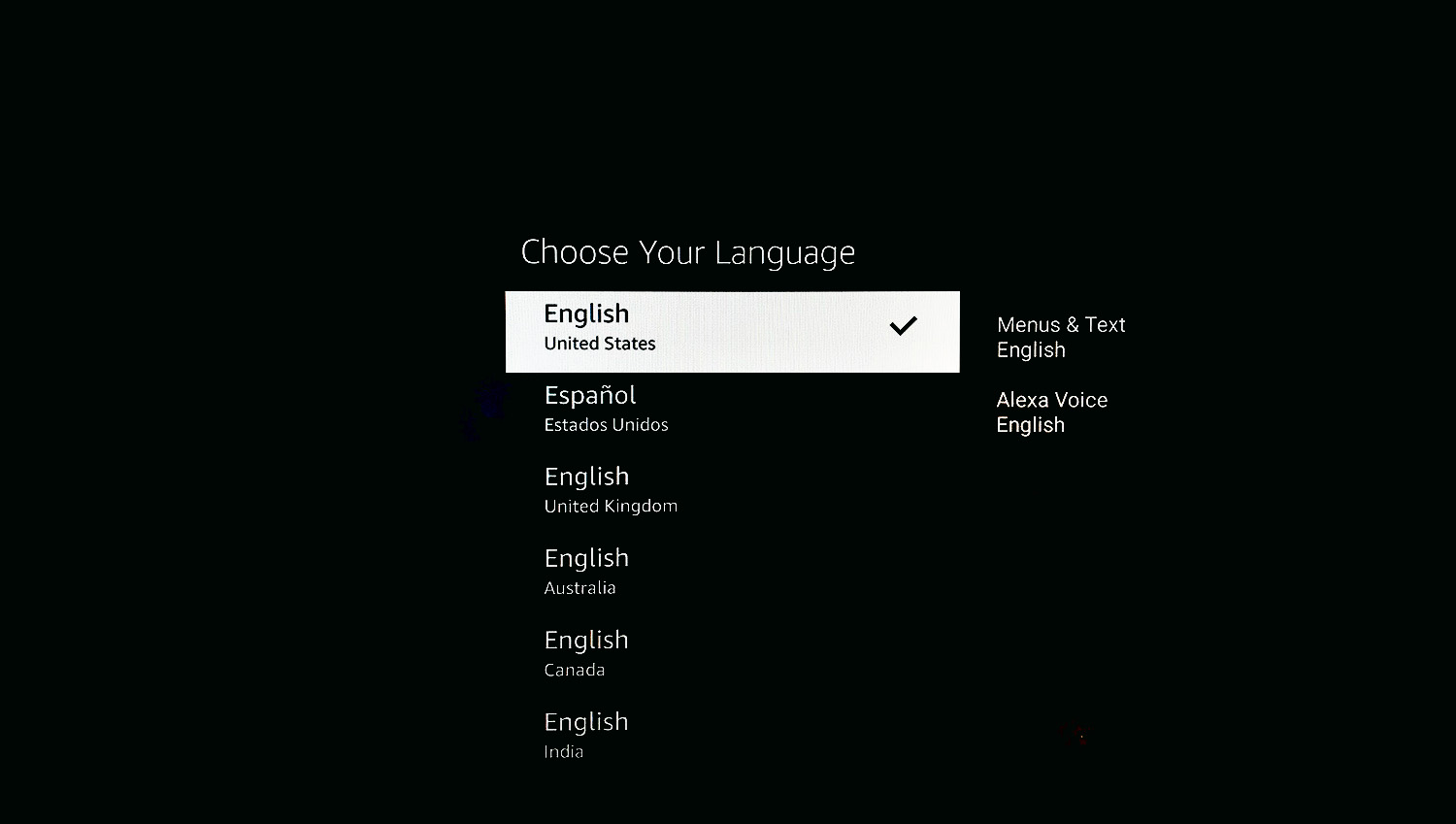

  • Select your Language option.
Select Language screen

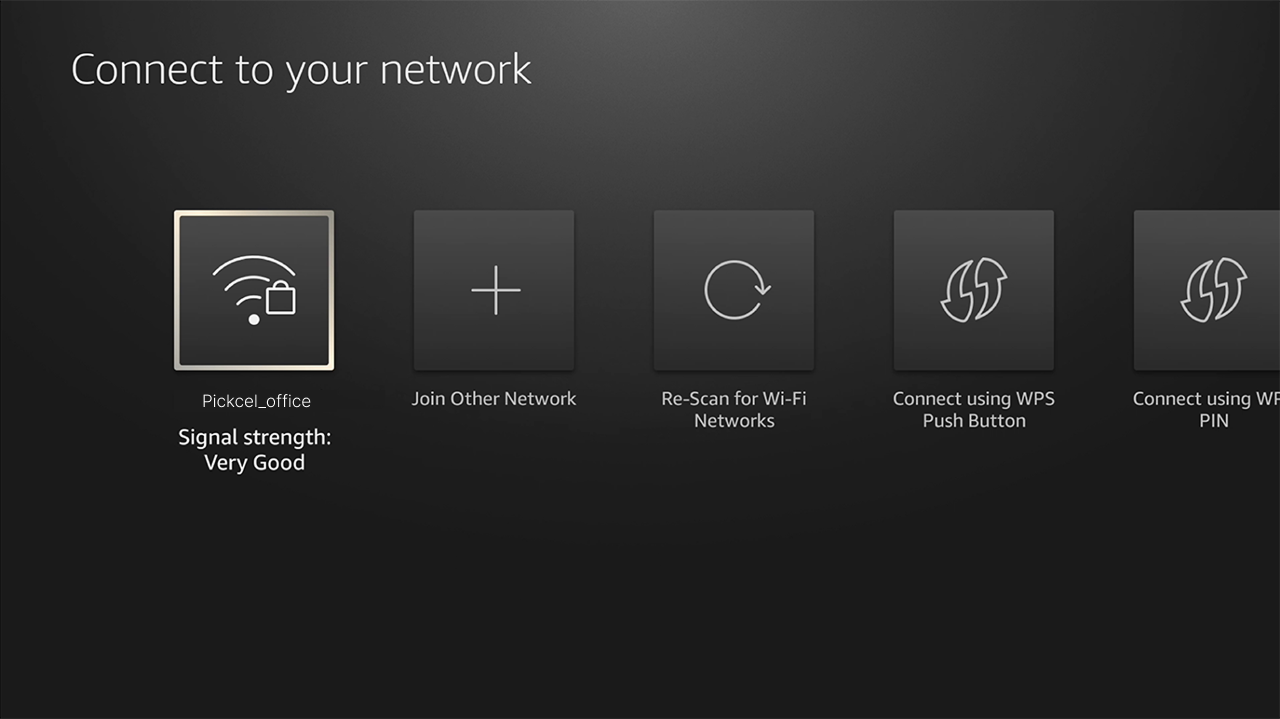

  • Select your Wi-Fi network and input login credentials.
Connect to WiFi network
You will see a “Connection successful” message once the device has an internet connection. The device will then check for updates—wait a few moments for this to complete.
Amazon Setup ResourcesVisit Amazon’s official setup guide for detailed instructions on mobile app setup, remote pairing troubleshooting, and answers to common setup questions.
3

Register Device with Amazon Signage Account

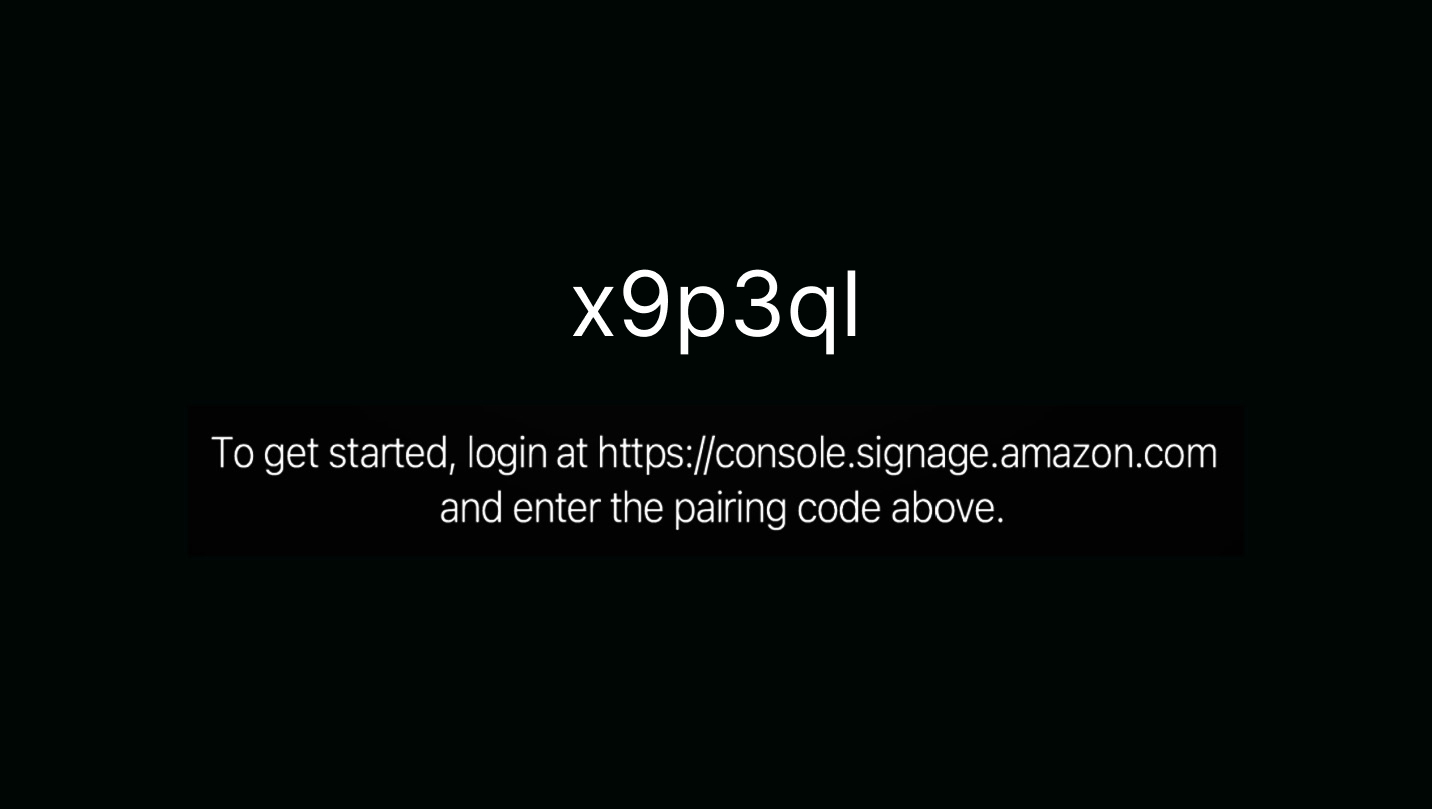

A 6-digit code from Amazon will appear on the screen, along with a link to register your device at https://console.signage.amazon.com/.
Note the 6 digit code

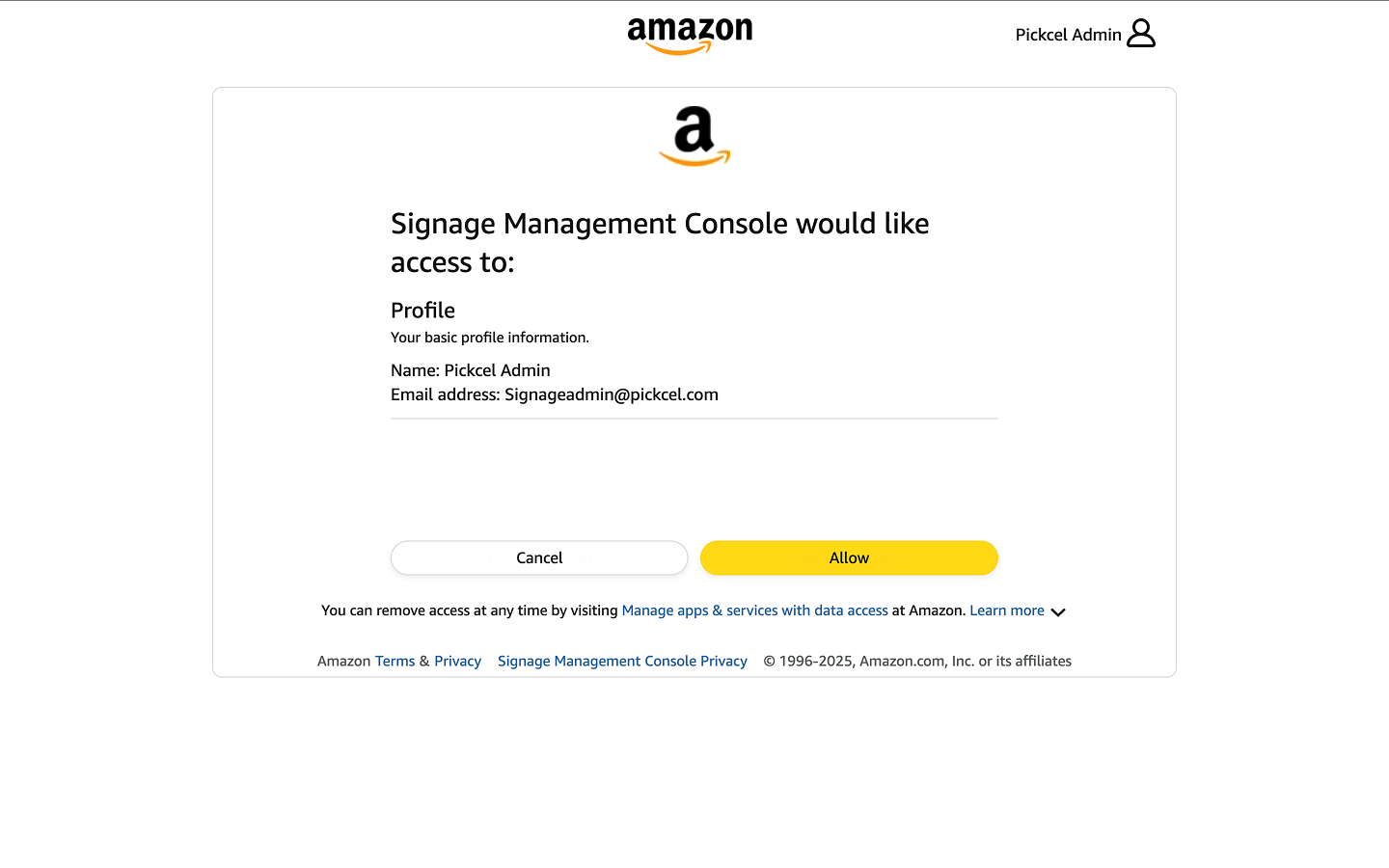

Login with Amazon
  • In your Amazon Signage account, click + Add Stick.

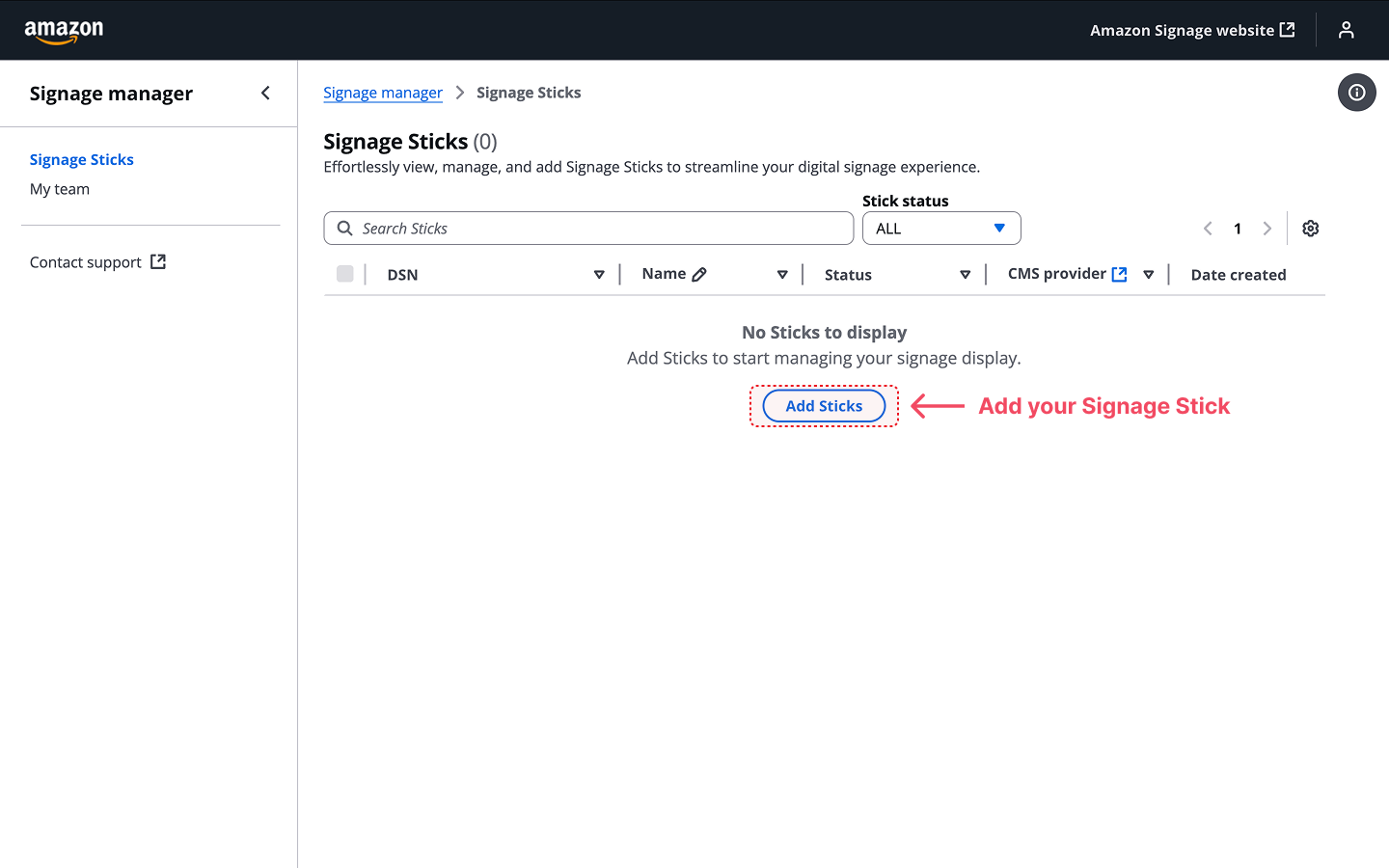

Add Stick button

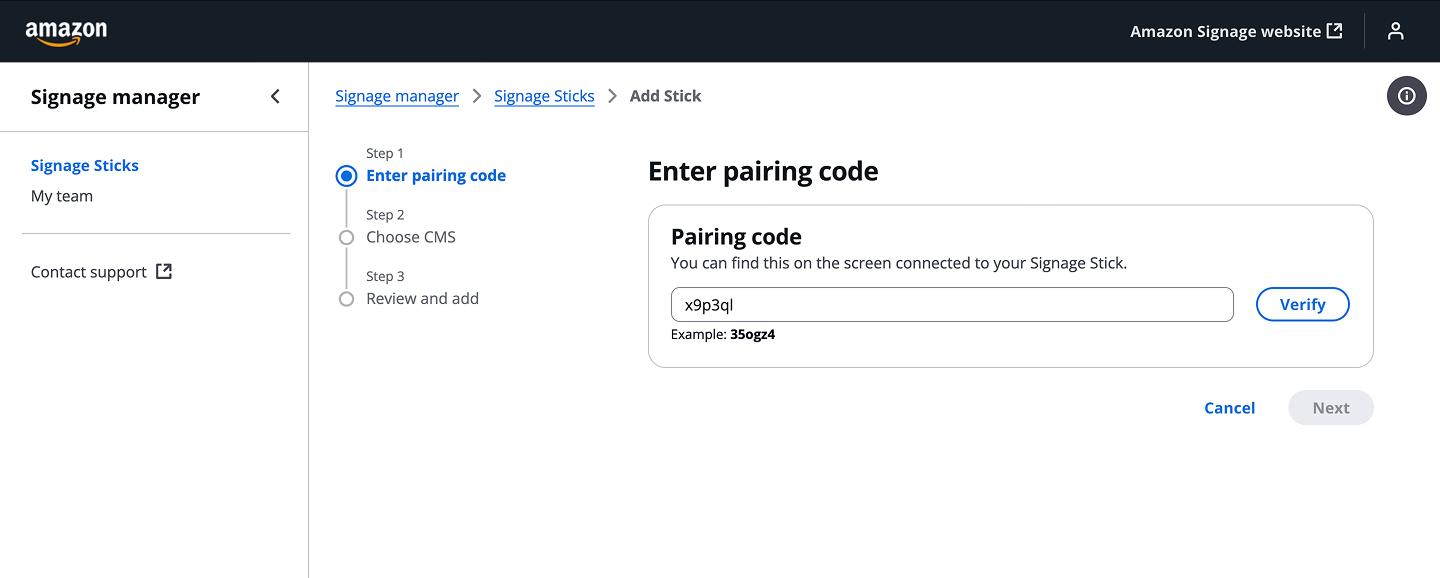

  • Enter the 6-digit pairing code displayed on your Amazon Signage Stick in the “Pairing code” field. Click Verify to proceed.
Enter pairing code screen
If you are accessing your Amazon Signage account for the first time, you’ll be taken directly to the “Let’s set up your new device!” screen where you can start with Step 1: Enter pairing code.
4

Choose Pickcel as your CMS

After verifying the pairing code, click ‘Next’ to proceed to Choose CMS.
  • Search for or scroll through the list to find Pickcel.
  • Select Pickcel Digital Signage from the available CMS options.
Choose Pickcel CMS
  • Click Next to continue to the review step, confirm your selections and click Add to complete the signage stick registration.

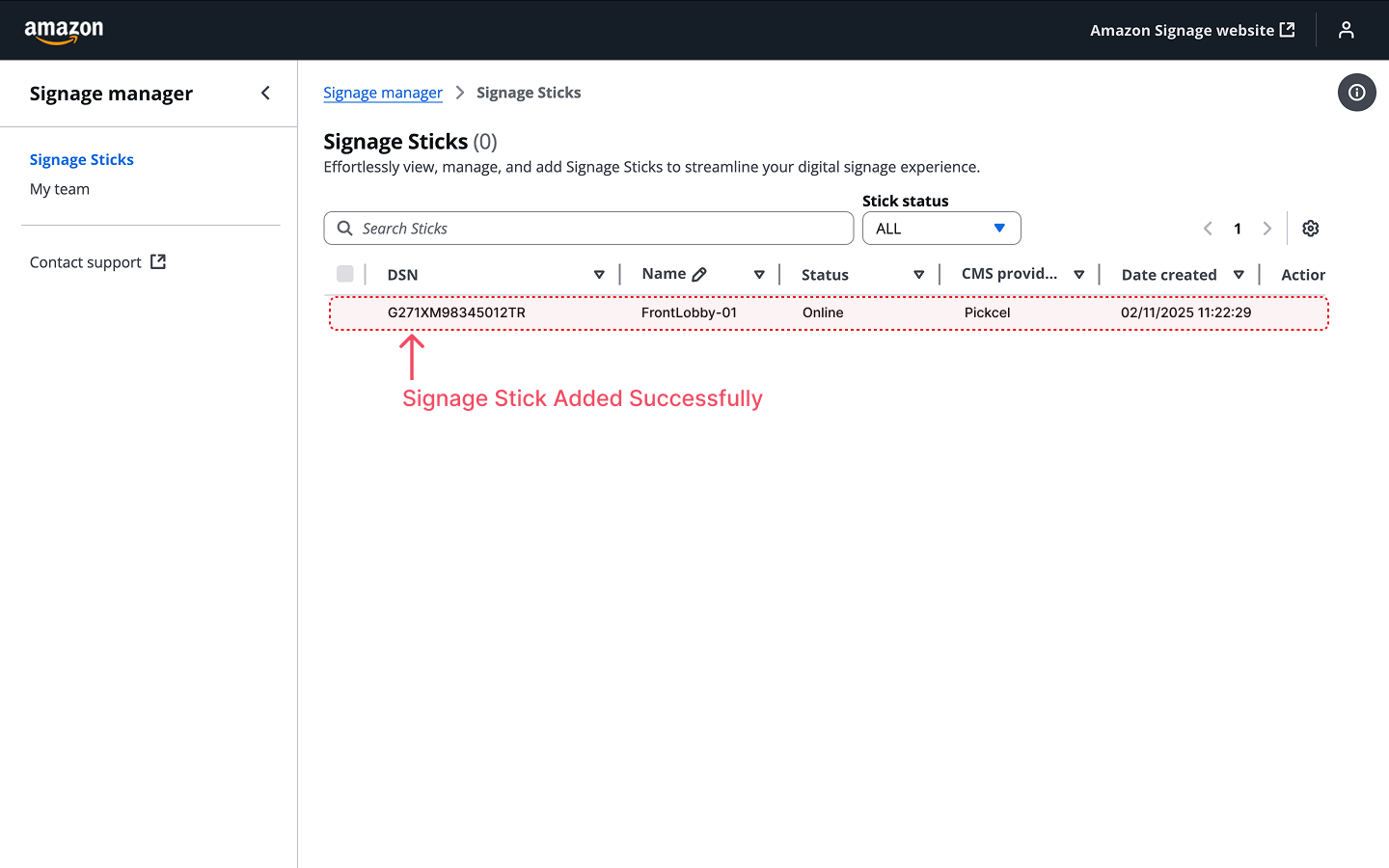

Your Signage Stick will now appear in your Signage Sticks list in the Amazon Signage Manager.
Device registered successfully
5

Download and Install Pickcel App

Once the device has been registered to your Amazon Signage account, allow the device to download and install the Pickcel player app automatically. This may take a few moments.

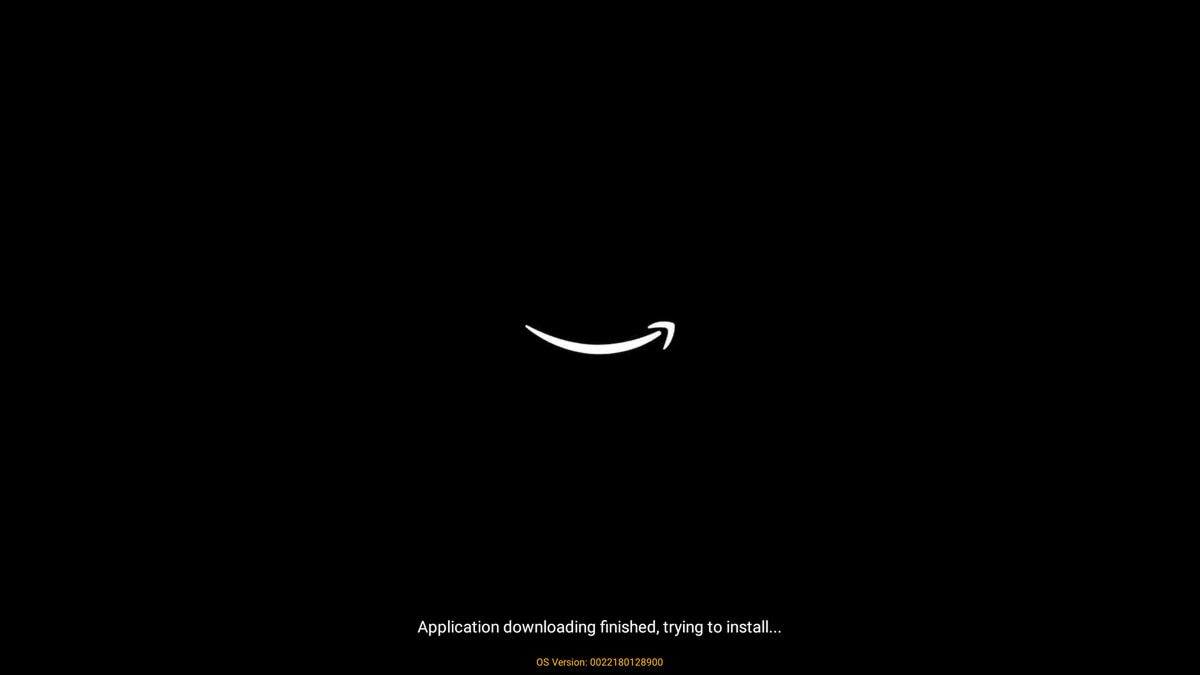

Pickcel app installing
6

Get Registration Code

Once the Pickcel player app is downloaded and installed, it will automatically display a 6-digit Screen Registration Code on your screen.

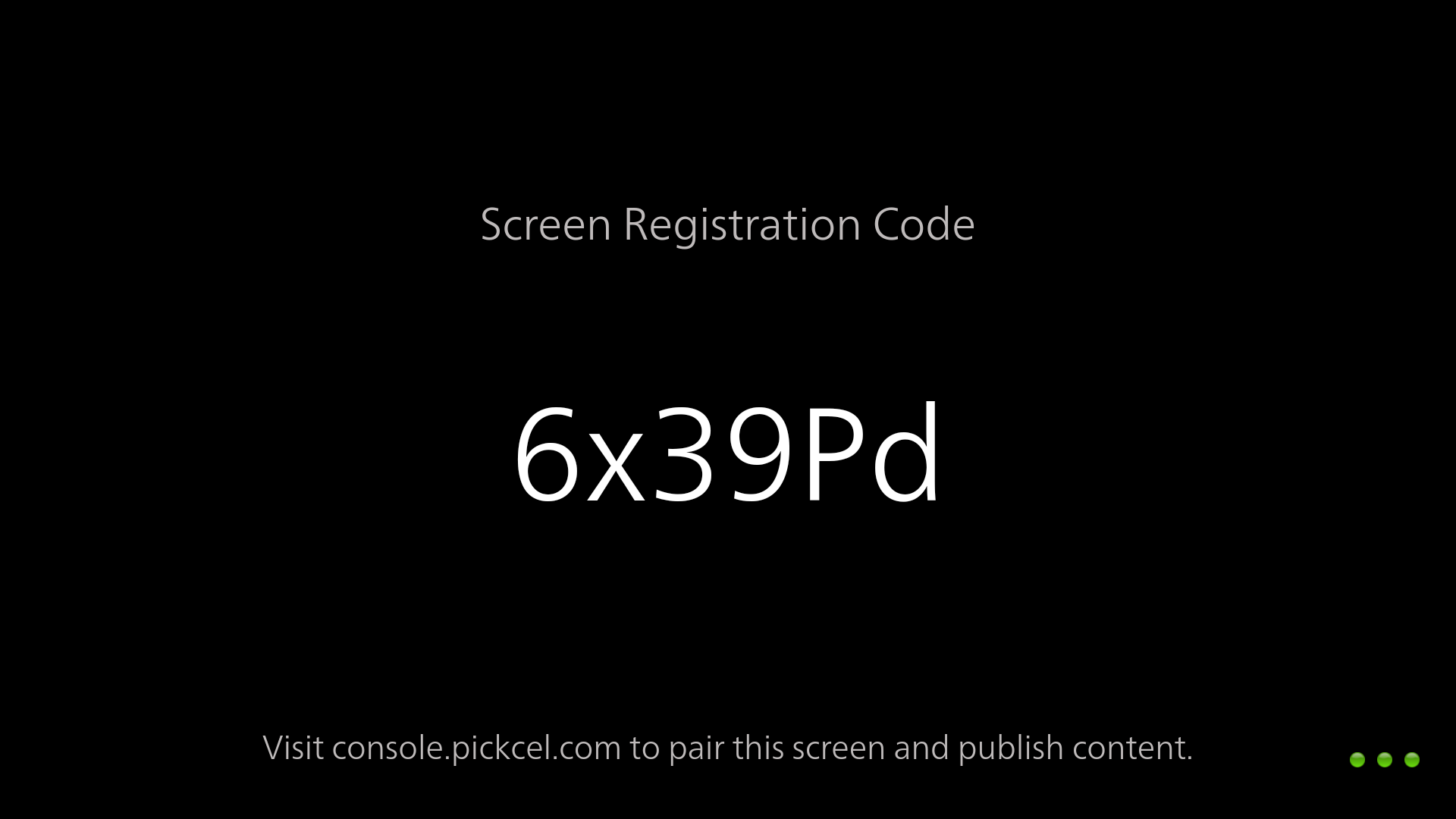

Screen Registration Code
And that’s a wrap! 🎉 You’ve successfully installed the Pickcel Digital Signage Player on your Amazon Signage Stick.
Complete the SetupNow in a browser, sign in to the Pickcel Console and enter the six-digit code to complete the pairing of the screen.To learn how to pair your device with the Pickcel console, click here.
